应用
一、Sports and Leisure Application Bike bonding 自行车粘结

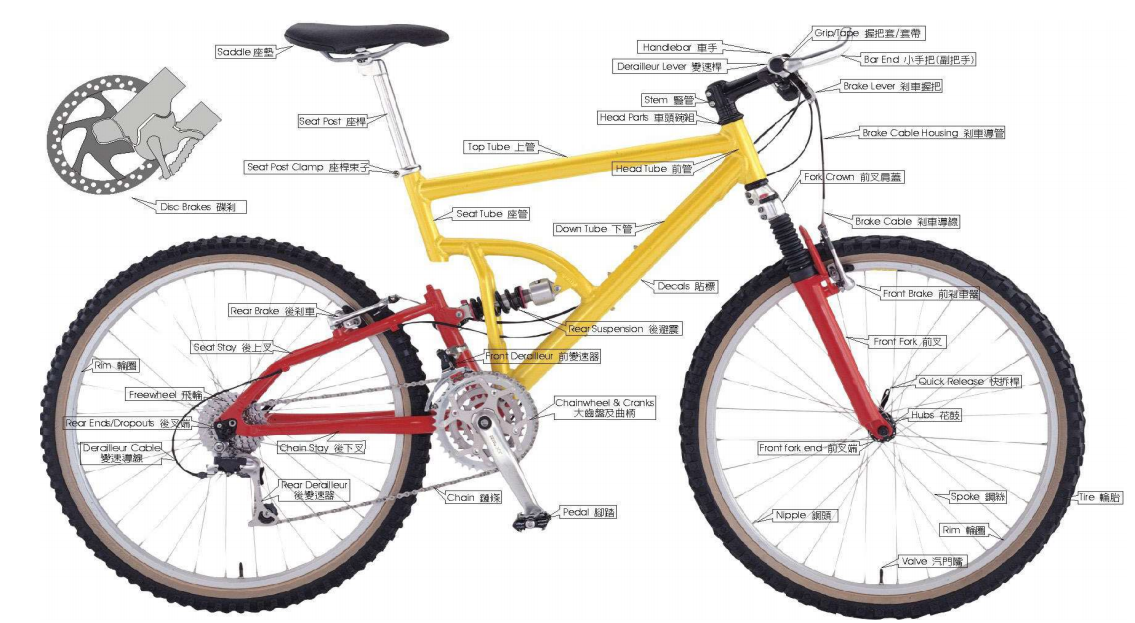

1.Bike structure 自行车结构

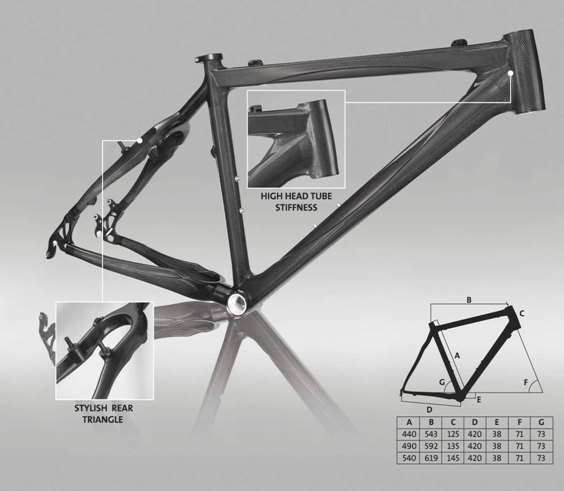

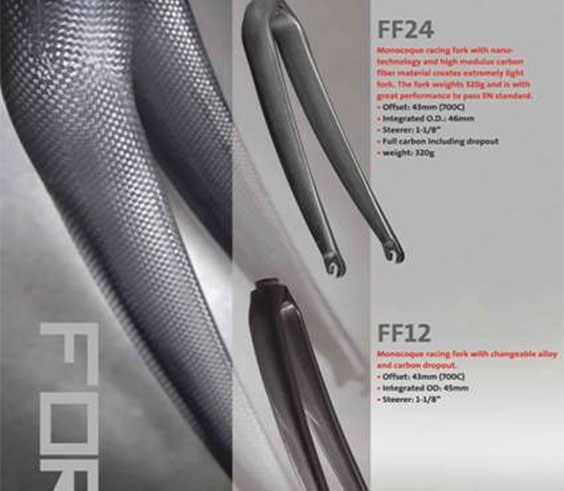

2.Bike Frame/Front fork自行车支架/前叉
1）Substrate 底材：CFRP to Aluminium or Cr/Mo Steel，CFRP /铝或铬锰铁合金
2）Design of Joint 接头设计：Coaxial vertical joints，连轴垂直
3）Pretreatment 预处理：Sand blasting degreasing on CFRP，sand blast，degrease，anodise and prime on Aluminium，CFRP(喷砂除油),铝(喷纱,除油,阳极化,底漆)
4）Key Challenges 主要挑战：Requires high shear loading - 30 N/mm2at full cure 要求高的剪切力 – 完全固化后达到 30 N/mm2
5）Araldite AV 119：
1-c epoxy, simple to use and no concern on inaccurate mixing ratio.
单组份环氧胶粘剂, 无须称量混合, 使用简单.
Thixotropic, easy to apply but can provide non sag capabilities.
触变性,容易使用既不流挂
LSS: 150oC, 30 mins -> 27-30 N/mm2
拉伸剪切强度: 150oC, 30 分钟-> 27-30 N/mm2

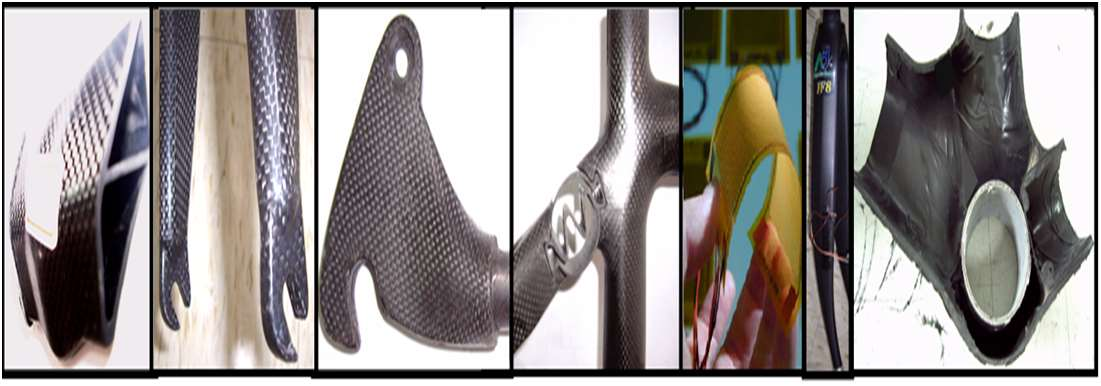

3.Bike others parts 自行车其他部件
1）Substrate 底材：CFRP
2）Design of Joint 接头设计：Coaxial vertical/Lap joints 连轴垂直/搭接
3）Pretreatment 预处理：Sand blasting degreasing on CFRP，CFRP（喷砂除油）
4）Araldite products：AW 138M-1/HV 998，Araldite 2011，Araldite AV 119
-
二、Sports and Leisure Application Ski & Snowboard bonding 滑雪板粘结
1.Substrate 底材：PC/Plastic/CFRP 塑料/PC/CFRP
Design of Joint 接头设计：Lap joints/搭接，Coaxial – shaft in socket 同轴-杆插入插头
Pretreatment 预处理：Sand blasting degreasing 喷砂除油
Araldite products：AW 136/HV 994，Araldite 2021，XH 180

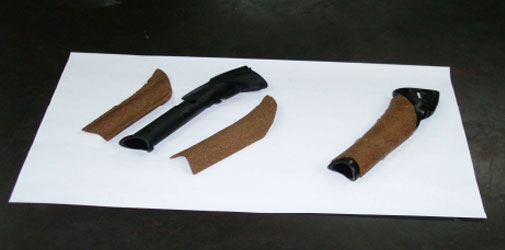

2.Substrate 底材：Plastic塑料
Design of Joint 接头设计：Lap joints 搭接
Pretreatment 预处理：Sand blasting degreasing 喷砂除油
Araldite products：Araldite 2011，Araldite 2012
-

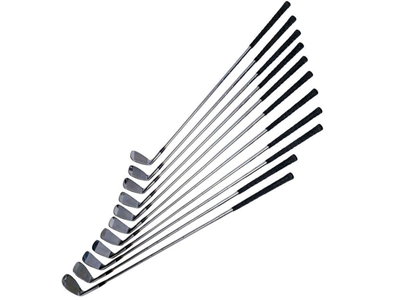

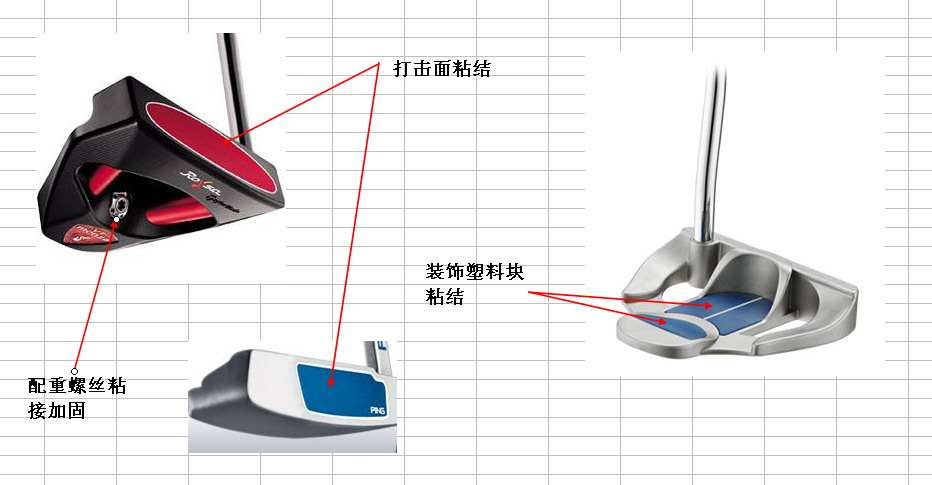

三、Golf Club bonding 高尔夫杆粘结
1.Substrate 底材：CFRP / Steel Shaft to Titanium Alloy / Mild Steel Head CFRP/钢桿到钛合金/软钢頭
Design of Joint 接头设计：Coaxial – shaft in socket 同轴-杆插入插头
Pretreatment 预处理：Sand blasting and degreasing 喷砂除油
Araldite products：Araldite 2011，Araldite 2012，Araldite 2021
2.Substrate 底材：Steel/Titanium Alloy / Mild Steel Head/ Plastic/钢/钛合金/软钢頭/塑料
Design of Joint 接头设计：Lap joints/搭接
Pretreatment 预处理：Sand blasting and degreasing 喷砂除油
Araldite products：Araldite 2011，Araldite 2012，Araldite 2021，Araldite AV 119，Agomet F 305/Lacquer 2
-
四、Sails Rod bonding 风帆杆粘结
Substrate 底材：AL / Steel 铝/不锈钢
Design of Joint 接头设计：Coaxial – shaft in socket 同轴-杆插入插头
Pretreatment 预处理：Sand blasting and degreasing 喷砂除油
Araldite products：Araldite 2015
-

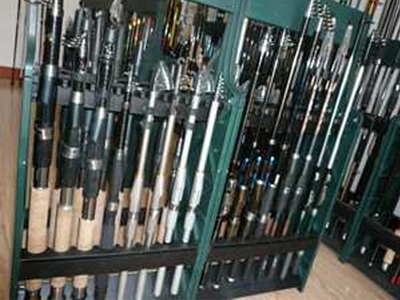

五、Fishing Rod bonding 钓鱼竿粘结
Substrate 底材：AL / CFRP 铝/CFRP
Design of Joint 接头设计：Coaxial – shaft in socket 同轴-杆插入插头
Pretreatment 预处理：Sand blasting and degreasing 喷砂除油
Araldite products：Araldite 2011
